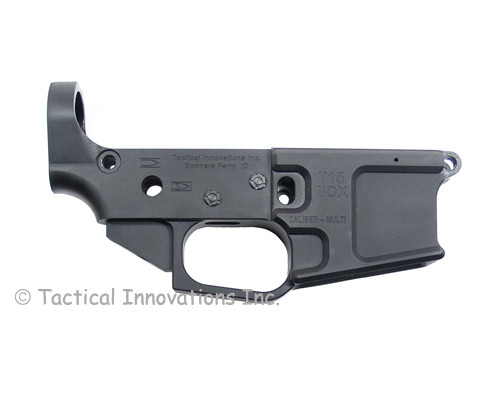

Our T15BDX™ (Billet DeluXe) Lower Receiver "cuts no corners" in the manufacturing process or the materials used. It is designed to provide serious AR15 style builders with a billet machined receiver that has every available feature included, at a price that makes it an easy choice over a traditional mass produced forged receiver. Since it is often difficult to compare receivers (other than on price and cosmetic appearance), we've listed below the features that will demonstrate why only a T15BDX™ Lower Receiver will be suitable for your next build.
| "The finest AR receiver on the market." - WG in NM "Every feature I wanted, and then some." - RP in MD "Assembly was as easy as the looks are good!" - MM in MS |
| T15BDX™ RECEIVER - EVOLUTION FROM BILLET BAR STOCK |
 |
|
|
| 1. FACTORY INSTALLED STBA™ - Stainless Trigger & Bushing Assembly | ||
|
The traditional steel hammer and trigger pins in the aluminum receiver have always been an area of concern for all AR15 shooters. In addition, the tolerances between the trigger and the trigger pin and the trigger pin and the receiver need to be as close as possible to provide a crisp trigger without creep and similar errors that will effect accuracy. Now with the addition of our STBA™ - Stainless Trigger & Bushing Assembly, you can easily solve all of the issues associated with hammer and trigger pins in your AR receiver including: 1. hammer/trigger pins precision CNC machined to .154 diameter 2. no steel pin to aluminum receiver wear consideration 3. stainless receiver bushings are threaded for easy replacement if necessary 4. alignment is maintained at high tolerances due to precision fit between receiver bushing and pin. These T15BDX™ receivers are manufactured with the STBA™ - Stainless Trigger & Bushing Assembly factory installed before they are shipped to your dealer. The CNC machined precision hex head non-rotating hammer and trigger pins are included, ready for final assembly with your fire control parts. Never worry about pin wear, pin alignment or pin sizes again. Our STBA™ - Stainless Trigger & Bushing Assembly - Another Tactical Innovations Exclusive! |
|
| 2. PRECISION CNC MACHINED FROM SOLID BILLET ALUMINUM | |
|
Our T15BDX™ Lower Receivers are precision machined on modern CNC machining centers from solid billet aluminum bar (not from a forging or a casting) for maximum strength, appearance and precision tolerances. Manufacturing is NOT sub-contracted to third party machine shops. If our name is on it, we make it here in our North Idaho manufacturing facility with complete control over all aspects of the manufacturing process. Each receiver undergoes numerous quality checks throughout the machining process to ensure unparalleled accuracy and dimensional tolerances. |
| 3. MANUFACTURED FROM 7075 T6 ALLOY ALUMINUM BAR (NOT 6061) | |
|
All T15BDX™ Lower Receivers are manufactured from certified USA produced 7075 T6 aircraft grade aluminum alloy bar stock. Sure, we could save a few dollars on the material and our tooling by using less expensive softer 6061 aluminum alloy, but a premium receiver has to start with the best material. Other manufacturers claim that 6061 will hold up just as well as 7075... but we don't want alloy strength to be a discussion now or an issue later, so we only use the stronger, more expensive 7075 alloy for all of our receivers. Would you put re-treads on a brand new car to save a few dollars? Of course not... |
| 4. WIRE EDM MACHINED MAGWELL | ||||
|
|
|||
| 5. LASER ENGRAVED MARKINGS | |
|
To engrave the ATF required markings on our T15BDX™ Lower Receivers, we use the same laser technology that is used to mark diamonds and expensive medical equipment. The result is deep engraving that is crisp and clean and looks like it belongs on a custom high quality receiver. Safe and fire positions are designated with universal "bullet logo" pictographs for the elegant appearance that is generally found only on higher priced firearms.
We cleanly mark the receiver with ATF's required information and do not clutter the receiver with logos or other advertisements. Why don't other lower receiver manufacturers also laser engrave their receivers? Once again it's laser machine cost and additional manufacturing time, but we think laser engraving is worth it! |
| 6. PATENTED FINGER SAFE POSITION™ - LEFT & RIGHT SIDE | |
|
Safety - Its of primary importance to all of us whether you're a recreational shooter, law enforcement or military. Good safety discipline requires the shooter to keep their trigger finger off the trigger until the target is engaged and they are ready to shoot. Our T15BDX™ has a patented Finger Safe Position™ machined into the receiver for a positive reflexive trigger finger safe placement point for both left and right handed shooters. No other receiver offers this safety provision that is included as standard on our T15BDX™ receiver. |
| 7. SHIPPED AS A "RECEIVER" - YOU DESIGNATE RIFLE OR PISTOL | |
|
Since our virgin stripped T15BDX™ Lower Receiver can be assembled in either a pistol or a rifle configuration (subject to ATF regulations), no designation of pistol or rifle is marked on the receiver which allows you to assemble it in either configuration you prefer (contact ATF for assembly restrictions and guidelines). The receiver is equally suited for either application. |
| 8. MULTI CALIBER MARKED | |
|
AR style lower receivers are the host to a large variety of calibers beyond the traditional .223/9mm/22LR choices. In order to maximize your caliber use opportunities, each T15BDX™ receiver is laser engraved to designate the caliber as Caliber - Multi to provide you with the maximum assembly flexibility. |
| 9. MACHINED "WINTER" TRIGGER GUARD | |
|
All T15BDX™ Lower Receivers have a "winter" trigger guard integrally machined as a part of the receiver. The integrally machined trigger guard adds aesthetic beauty as well as functional strength to the receiver by providing a structural bridge to reinforce the fire control section of the receiver. The trigger guard is large enough to easily manipulate the trigger, even with a light glove on. |
| 10. UPPER RECEIVER TENSIONING SCREW - INCLUDED STANDARD | |
|
With the varying tolerances in upper receivers, its optimistic to hope that the receiver you use will be a perfect fit on any lower receiver and we all know that a loose fitting upper receiver will make even the best custom built rifle seem sloopy. Most shooters solve the problem with a wedge under the upper receiver lug when the receiver is closed. It works well, but is cumbersome.
Our T15BDX™ Lower Receivers come standard with an easier solution. A nylon tipped allen wrench drive screw is installed that can be adjusted through the bottom of the receiver. The upper receiver tensioning screw allows you to put exact pressure on the upper receiver for a perfect upper receiver fit every time. A 1/8" allen wrench (not included) is required for adjustment if necessary. |
| 11. REAR PIN DETENT CAPTURE SCREW - INCLUDED STANDARD | |
|
Have you ever taken the stock off of an AR15 lower receiver and had the rear pin spring shoot out across the room? Our T15BDX™ Lower Receivers solve the problem by installing an allen wrench drive screw in the spring channel. Once you install the detent and the spring, simply screw the set screw in flush with the rear of the receiver. Switch stocks as often as you want and the lost spring problem no longer exists! Note: An .050 allen wrench (not included) is required in remove and install the Rear Detent Capture Screw. When assembling the receiver, it may be necessary to clip a minor amount off of the spring to achieve the desired spring pressure on the detent in order to compensate for the set screw length. |
| 12. REINFORCED CRITICAL STRENGTH AREAS | |
|
The T15BDX™ Lower Receiver is designed to be the strongest aluminum receiver available. Both the left and right sides of the T15BDX™ Lower Receiver are reinforced to provide maximum strength. The reinforcement on the right side provides a pocket area for quick easy magazine changes while the reinforcement rib on the left side of the receiver ensures that the magazine release will not protrude beyond the height of the receiver when the mag catch is pressed. Additional strengthening in critical areas includes (1) the front pin, (2) the stock extension tube and (3) the rear of the trigger guard. Note: The additional reinforcement areas on the left side of the receiver will prevent the use of an ambidextrous magazine release. |
| 13. HAND FINISHED FOR A PREMIUM APPEARANCE | |
|
Most manufacturers "finish" their receivers in a bulk vibrator that indiscriminately rounds all edges in addition to the sharp ones. However, a receiver with these features and precision can only be finished one way... individually by hand! Each T15BDX™ Lower Receiver is individually hand de-burred to remove all sharp edges from the machining process and then is individually abrasive blasted for a smooth, uniform surface finish in preparation for the final hard anodized finish. Our final visual quality control is simple to understand... "If our finishing crew wouldn't buy it with their paycheck, we won't send it out. Period." |
| Thanks for taking the time to read why we believe our receivers offer the greatest quality and value of any receiver on the market. If you're ready to build an AR15 style firearm and want to start with a receiver that is worthy of your time and financial investment, our receivers can be purchased through any FFL holder identically to any other firearm. We're proud to put our name on our T15BDX™ Lower Receivers and invite you to personally inspect the machining quality, the laser marking, the plentiful additional features and the individual hand finishing that make our T15BDX™ Lower Receiver a receiver that you'll be proud to own and pleased to shoot. |
|
|
|
|||||||||||||||||||||||||||||||
